PolyConnect Fittings Round 2pck

DIY

PolyConnect Fittings Round 2pck

In stock

R 8.00 – R 66.00

Push-in fittings for PolyConnect 32 mm round PVC tubing, in black or white: elbows, tees, corners, crosses, swivels, flanges, wall clips, braces, feet and end caps. Sold in packs of 2.

For pipe
PolyConnect 32 mm round
Material
Injection-moulded polypropylene
Fit
Push in, no glue or screws
Colours
Black, white
All specifications

Choose a colour to request a quote.

Every order is confirmed by our team before payment — we check stock with suppliers (typically within 1–2 working hours) and send you a firm quote including delivery.

Questions about this product? WhatsApp us

Description

These fittings join PolyConnect 32 mm round pipe into frames. They are injection-moulded polypropylene and push into the pipe ends, so there is no glue and no screws at the joints. Choose the colour to match your pipe. Every option is a pack of two.

Which fitting goes where

  • Straight: joins two pipes end to end, for runs longer than 3 m.

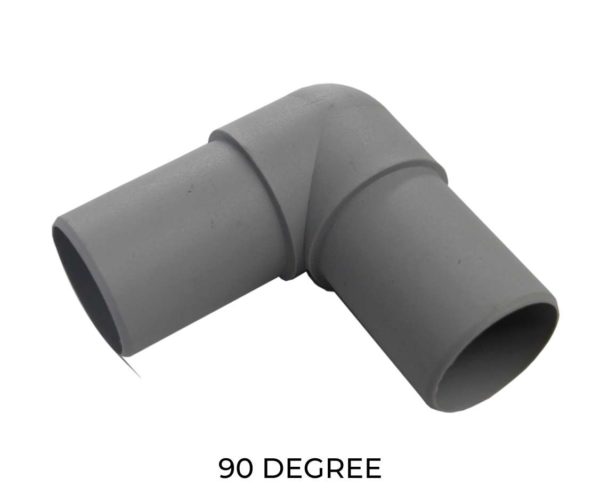

  • 90 degree: an elbow: two pipes at a right angle in a flat frame.
  • 3-way tee: three pipes in a T, in one plane.

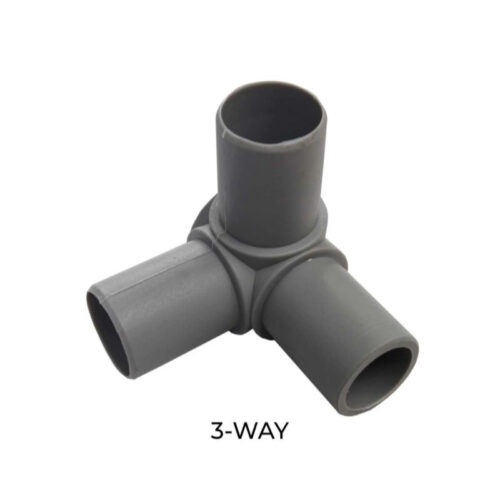

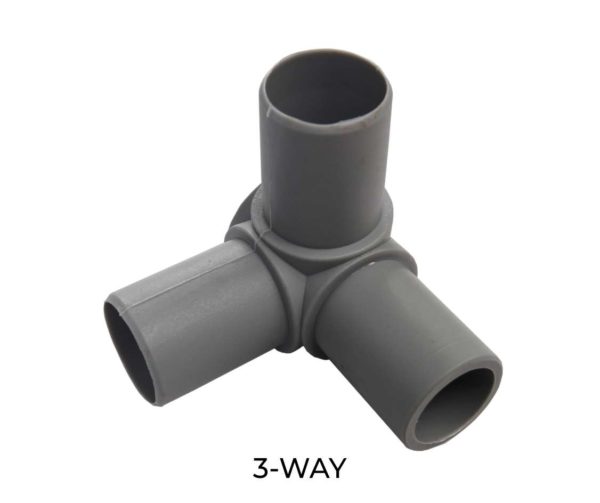

  • 3-way: the corner of a box frame: two sides and an upright. A cube needs eight.
  • 4-way cross: four pipes in a cross, in one plane.

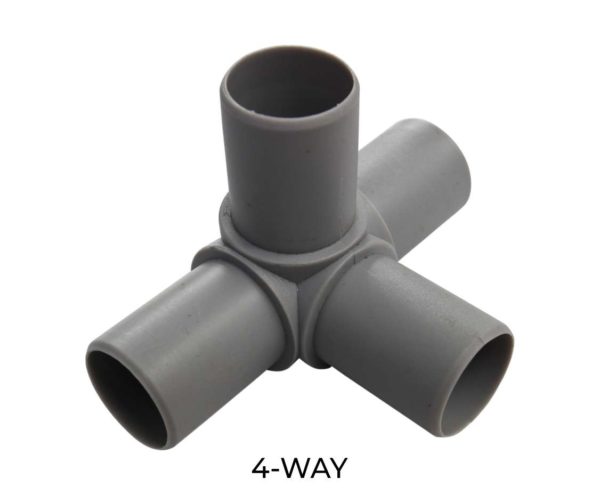

  • 4-way: three in a T plus an upright, where a shelf meets an upright partway along a frame.
  • 5-way: four in a cross plus an upright, in the middle of a large frame.

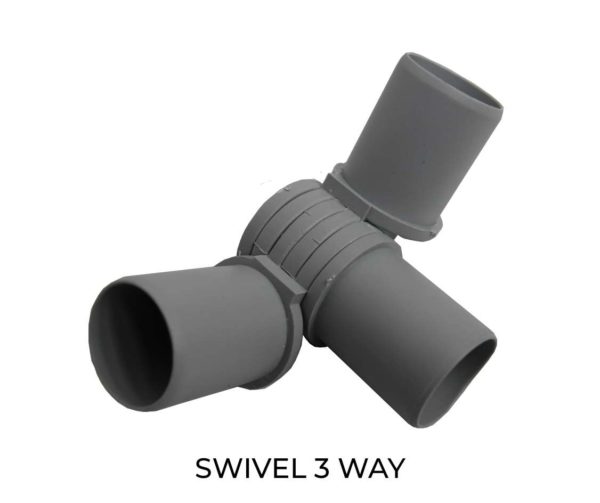

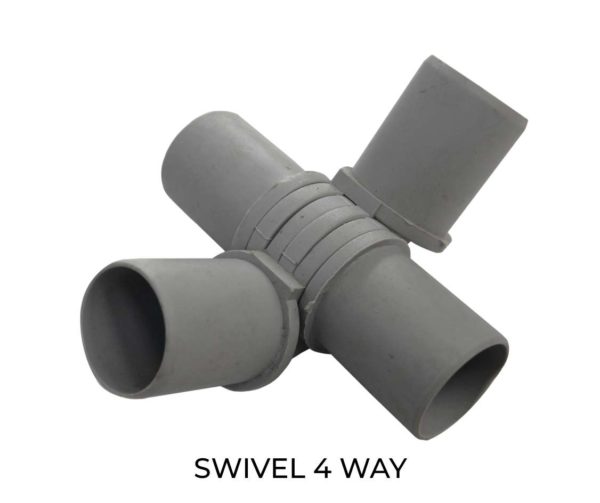

  • 2-, 3- and 4-way swivel: joints that turn, for angles other than 90°, such as a sloped roof or an A-frame.
  • Flange: a base that screws to a floor or bench, with the pipe standing in it.

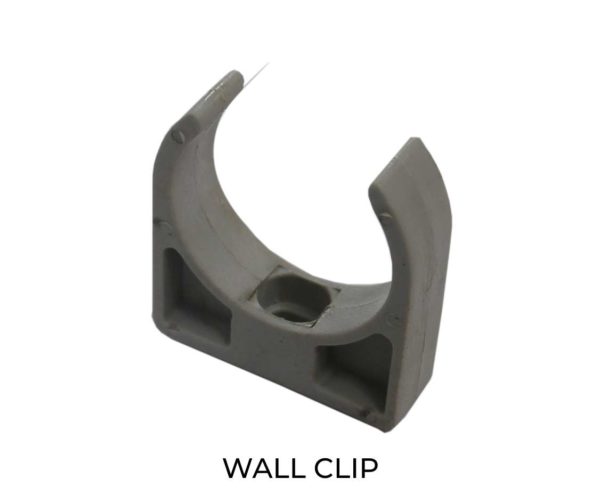

  • Wall clip, single or double: holds one or two pipes against a wall.

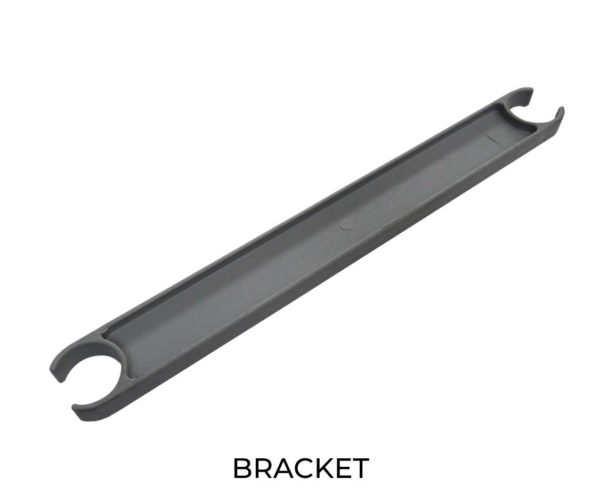

  • Side brace: a flat bar that clips across two pipes to stop a tall frame leaning.
  • Rubber feet: for the bottom of uprights, to protect floors and stop sliding.
  • End cap: closes an open pipe end.

Counting fittings

Count the joints on your sketch and match each to a type above, then halve the number to get packs. A box frame has eight corners: eight 3-ways, four packs. Add four rubber feet (two packs) if it stands on a floor you want to protect.

How to use

  1. Cut the pipe square and take off any burr, so the fitting slides in all the way.
  2. Dry-fit first. Assemble loosely, set the swivels to their angles, check the frame is square, then push every joint home.
  3. Tap, don't hammer. A rubber mallet seats a tight fitting without cracking it.
  4. Stop tall frames leaning with side braces, and fix them with flanges or wall clips where they must not move.

Specifications

For pipePolyConnect 32 mm round
MaterialInjection-moulded polypropylene
FitPush in, no glue or screws
ColoursBlack, white
TypesStraight, 90 degree, 3-way tee, 3-way, 4-way cross, 4-way, 5-way, 2-, 3- and 4-way swivel, flange, wall clip single and double, side brace, rubber feet, end cap
Pack size2 fittings
SKUHW-DIY-0095
